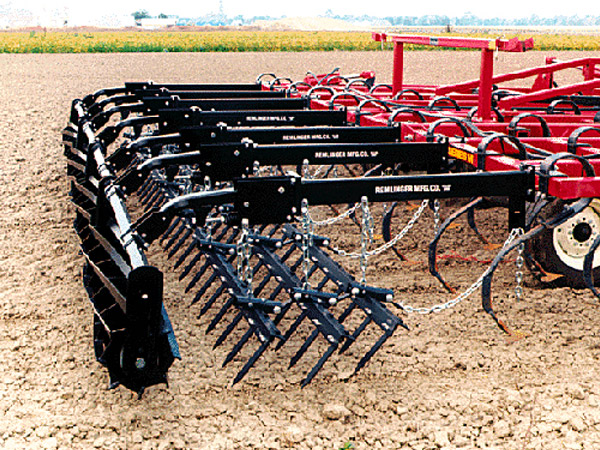

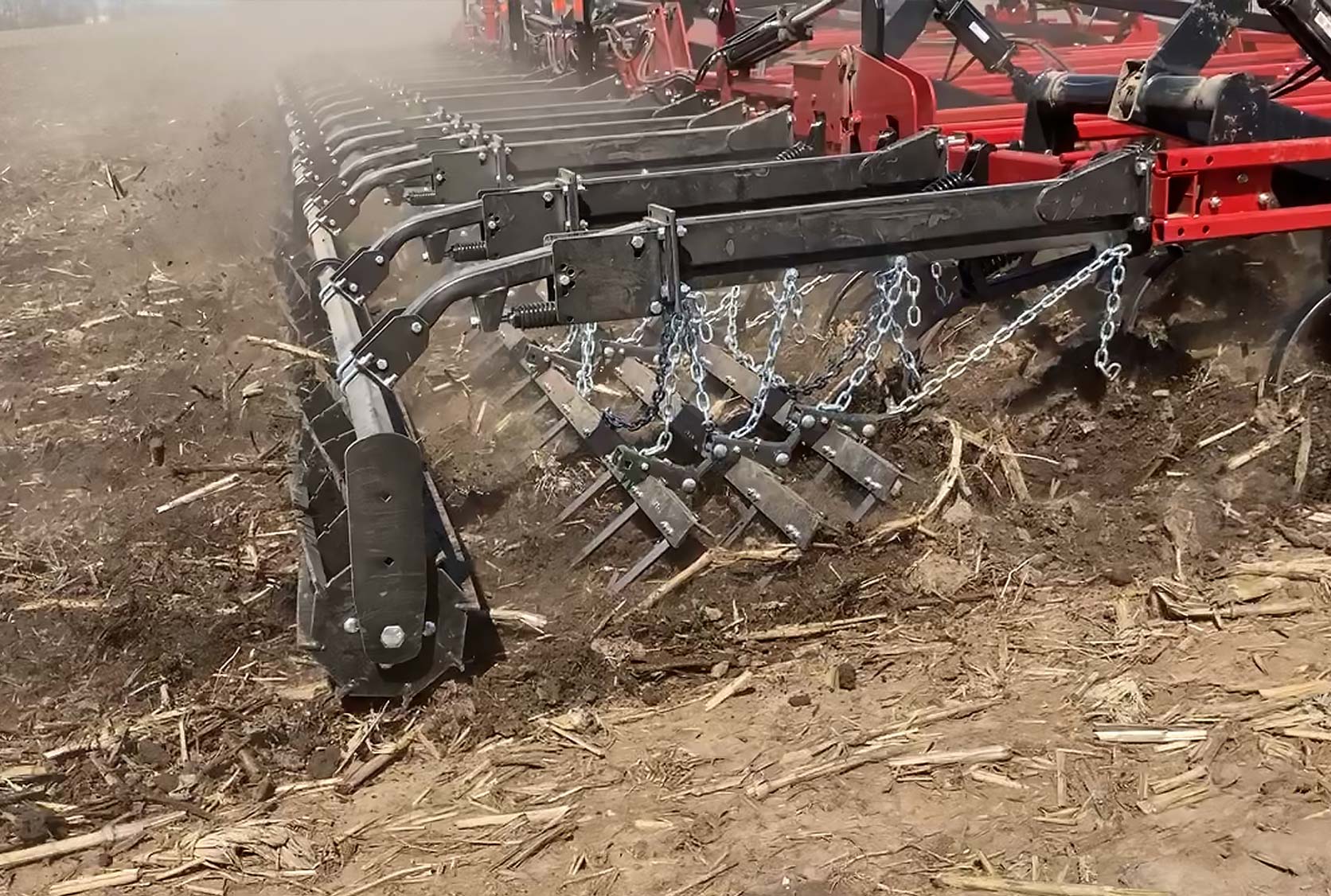

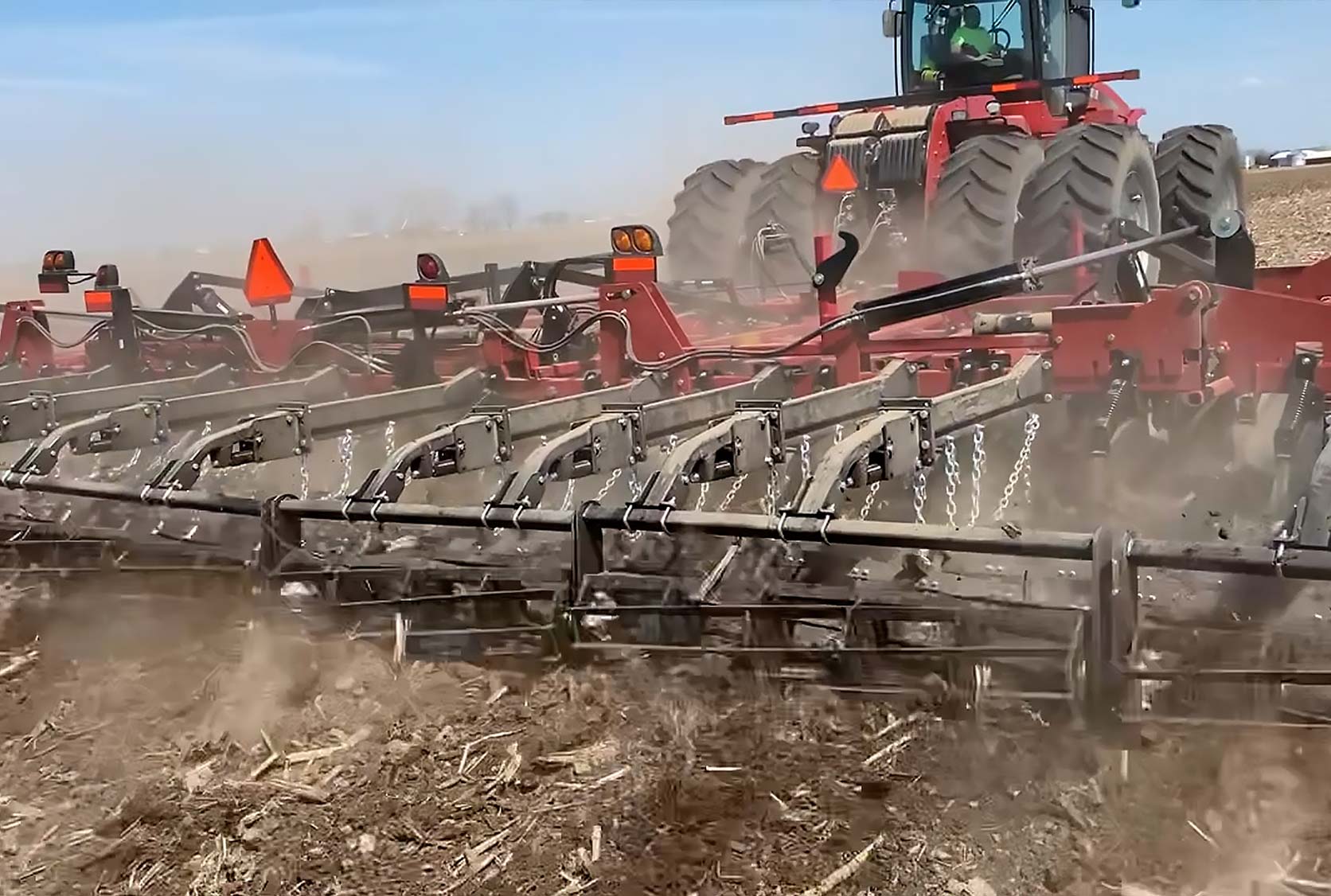

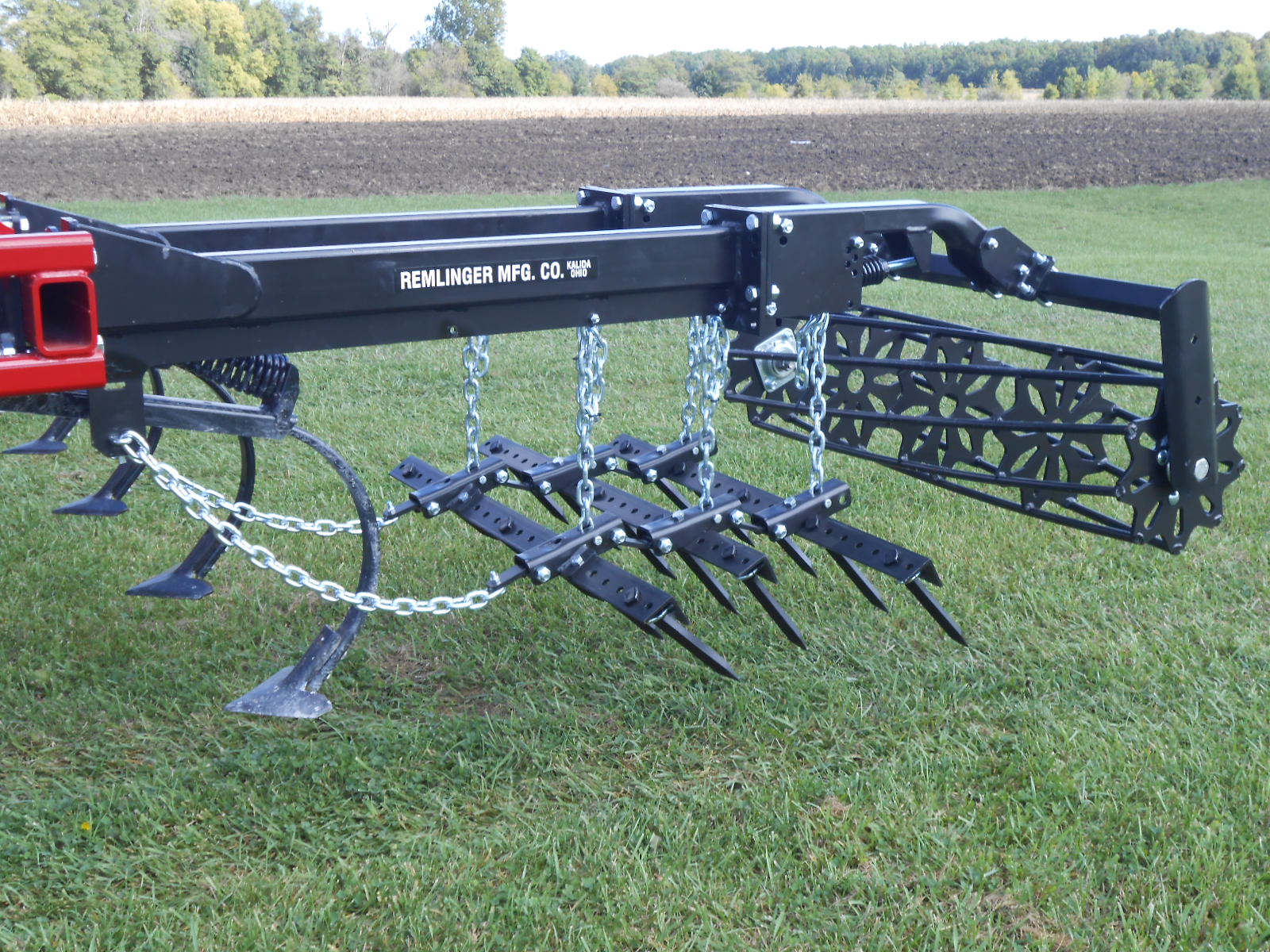

Remlinger’s 3 Bar Roller Flex Harrow mounts on field cultivators and other staight frame secondary tillage tools. The 3 bar angle iron harrow breaks clods and levels the soil. The roller penetrates up to 2″ deep, mixing and firming the soil. The unique design allows each tool to perform independently of the other.

Key Benefits

  • Available in 3 bar mounted designs

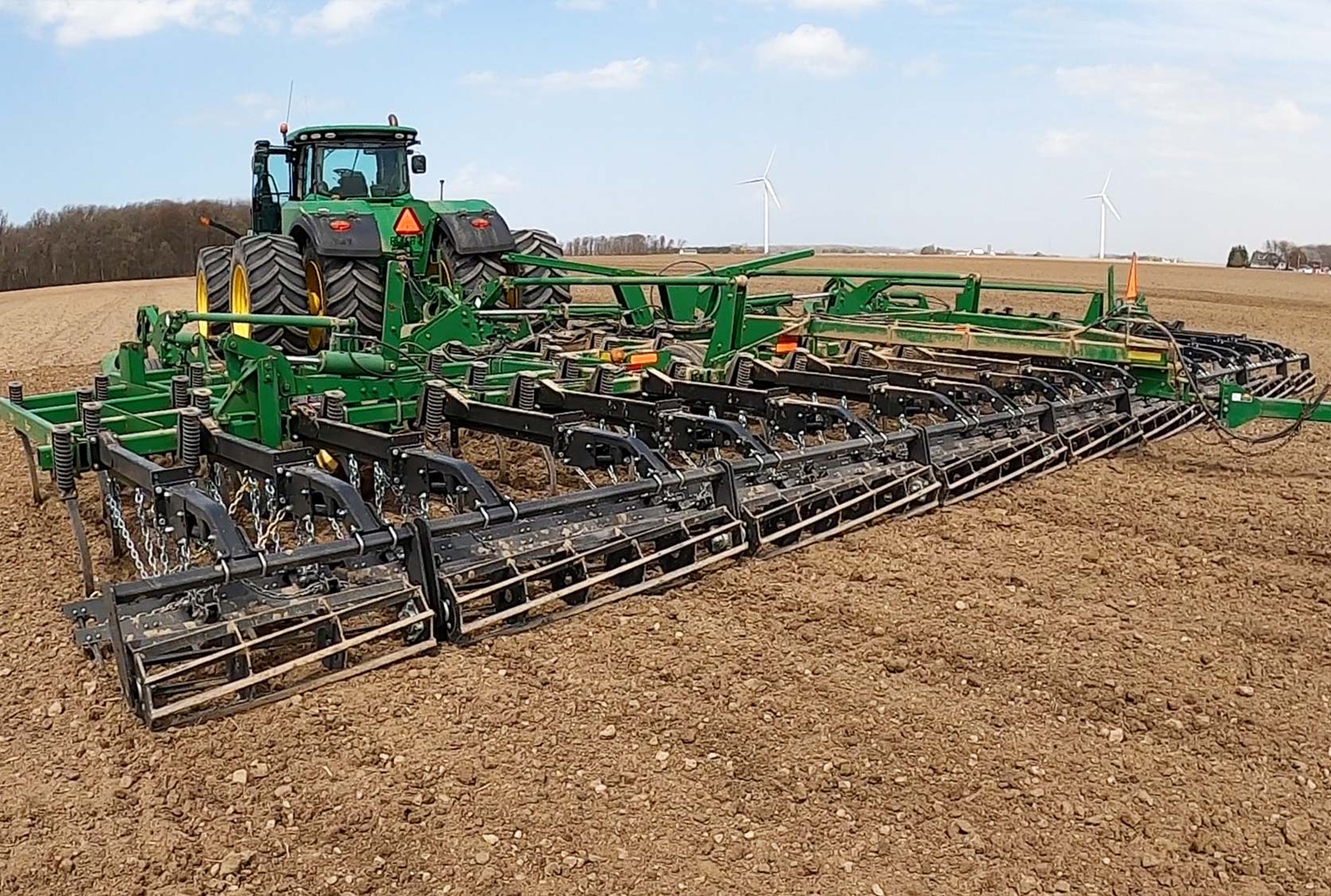

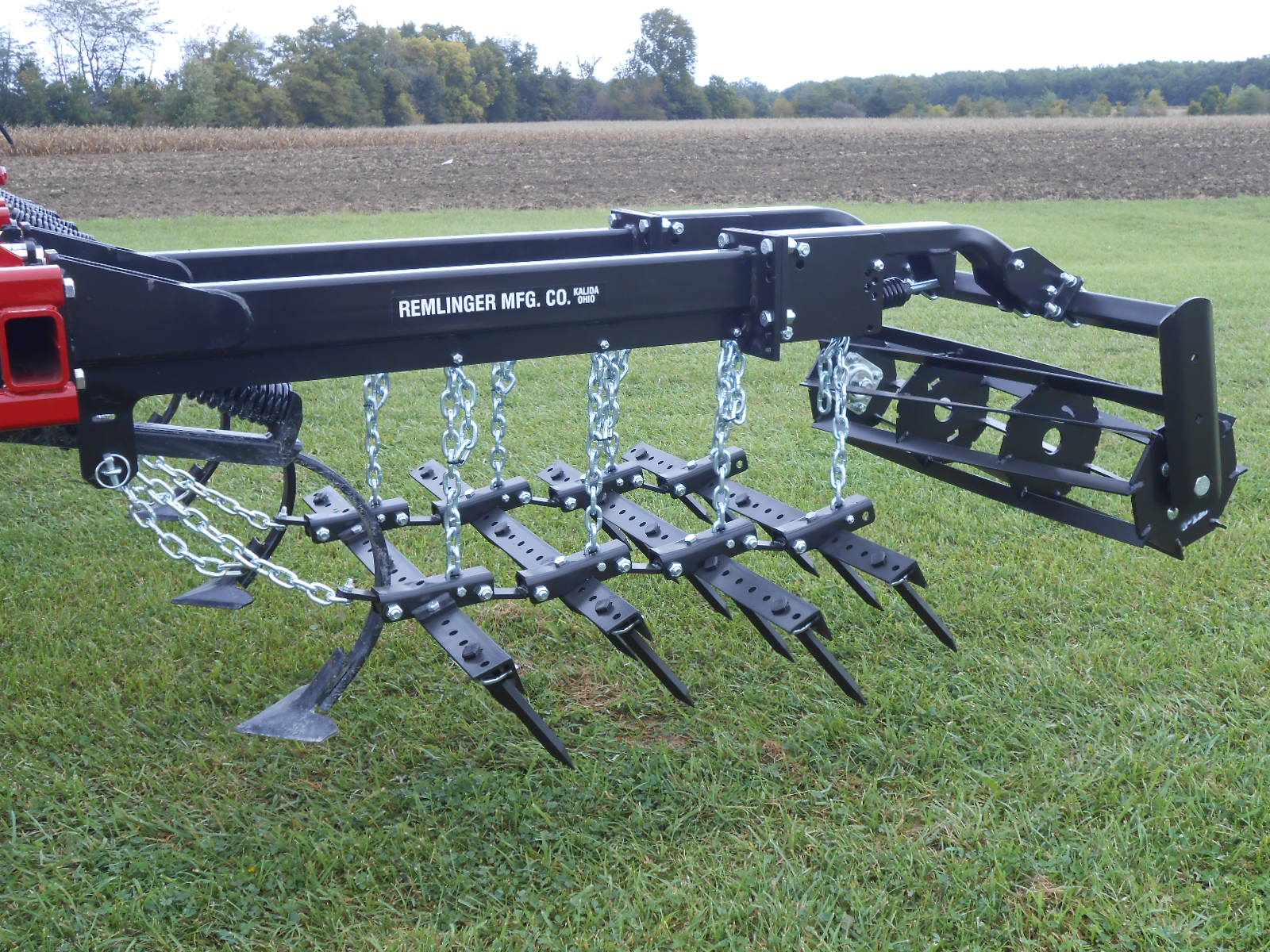

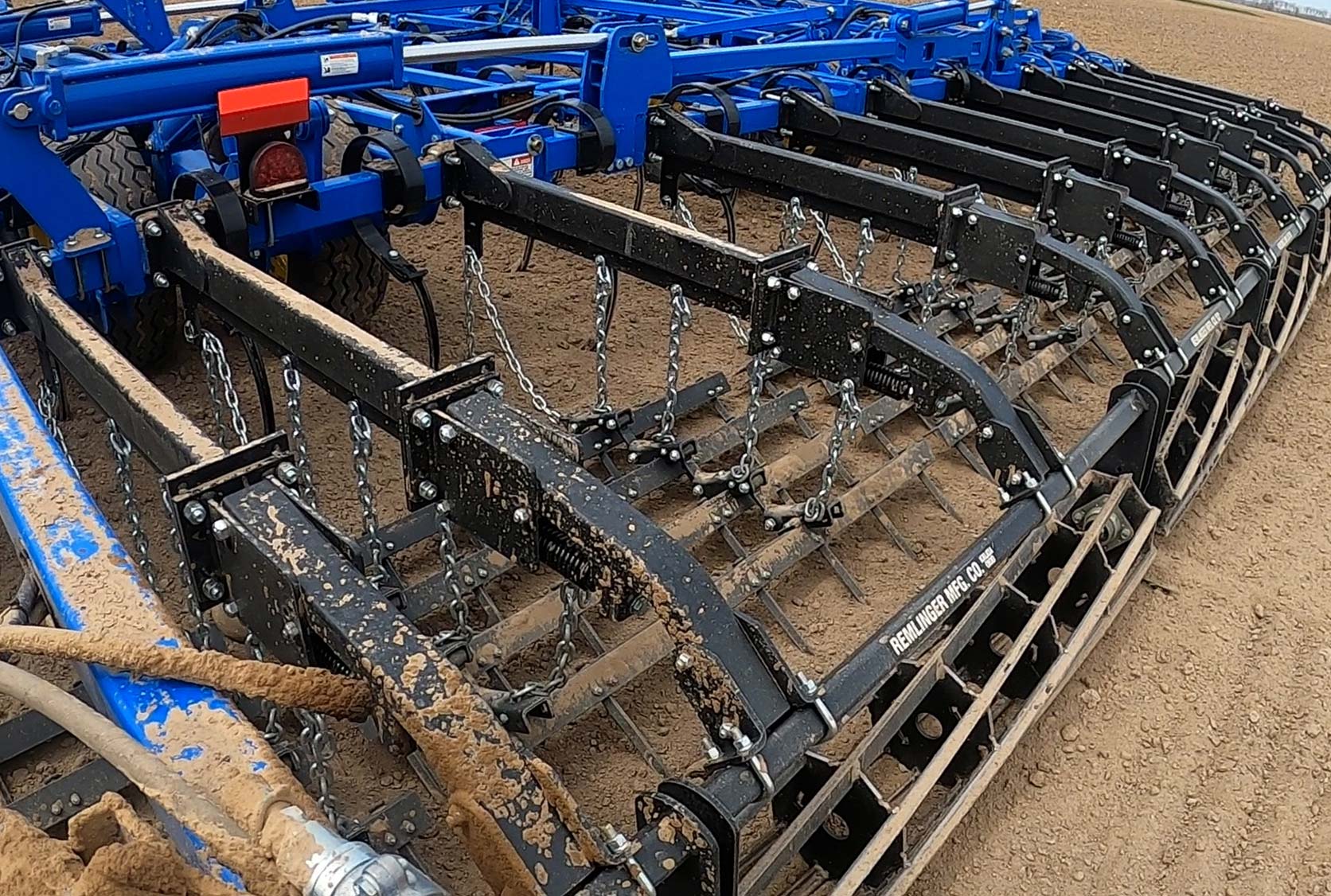

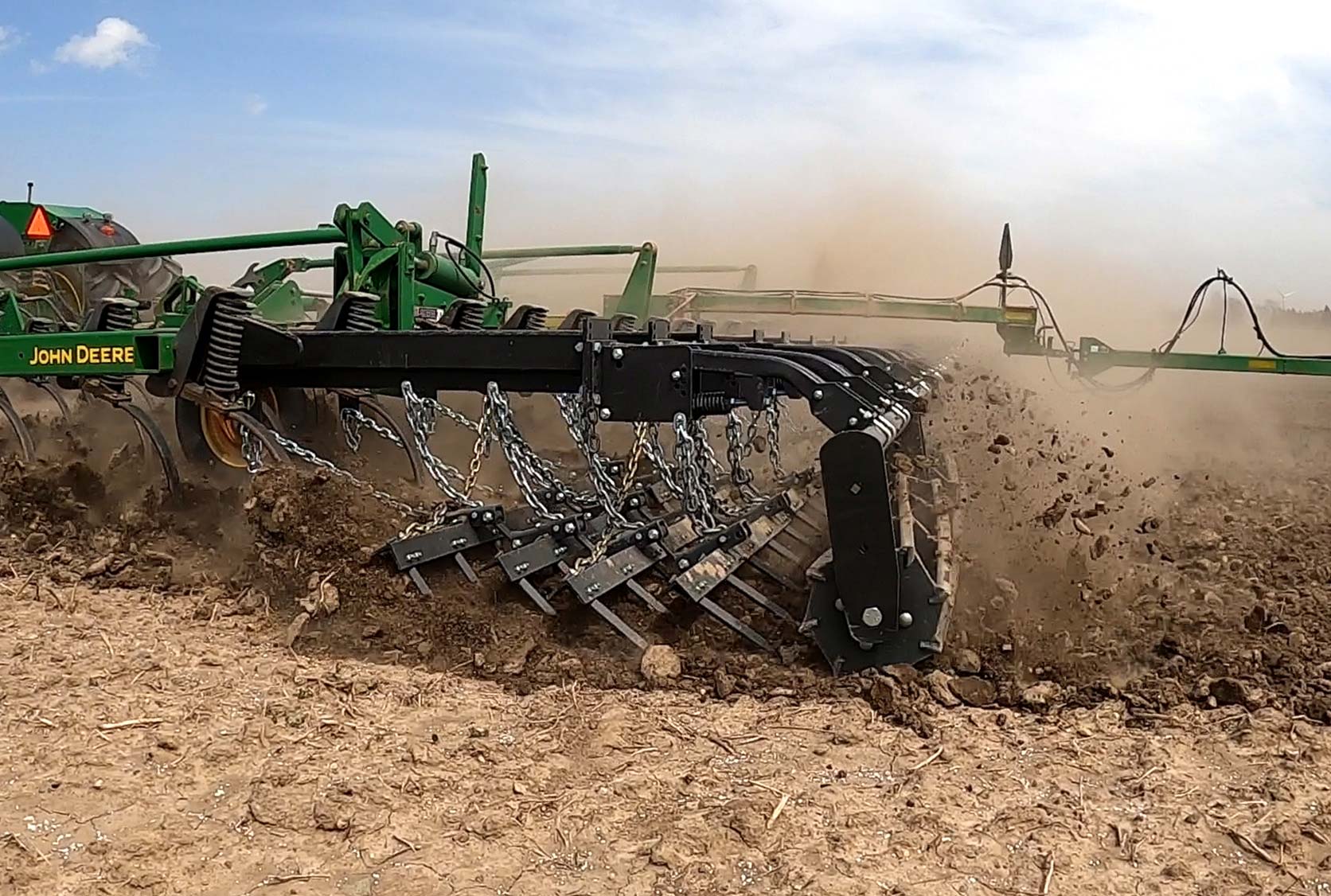

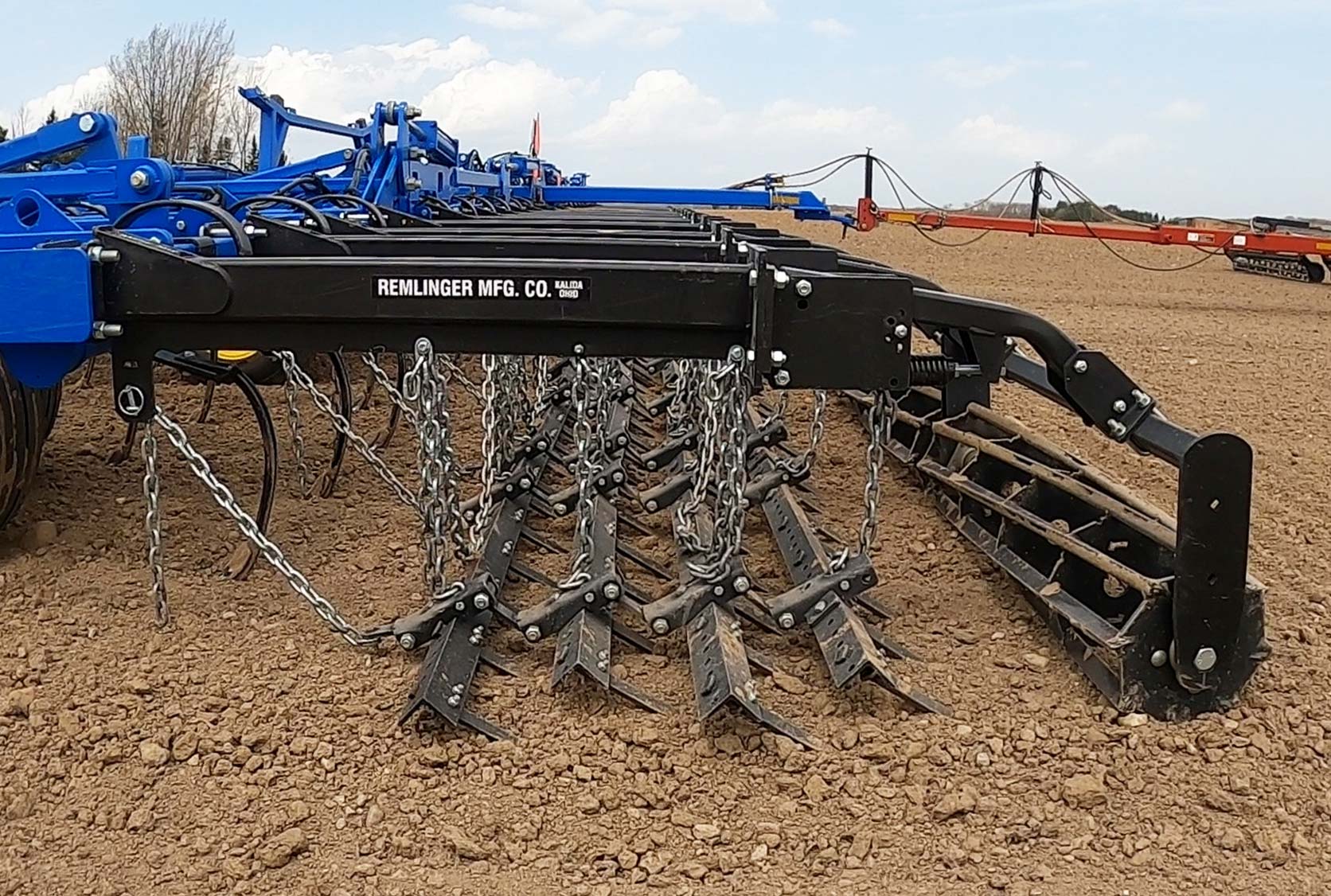

  • 4 bar roller flex on new style heavy frame field cultivators only
  • 3 bar double roller on new style heavy frame field cultivators only
  • 11″ spike tooth
  • 2-1/2″ x 2-1/2″ x 1/4″ angle iron bars
  • Angle iron bars suspended by chains
  • Spike teeth on each bar are on 9″ spacing
  • Each bar is on 10″ spacing
  • Single 12″ roller with spring tension mounting arms
  • 8 high carbon spiral blades
  • No center shaft, thus allowing for better soil and residue flow
  • Tillxtreme Bearing – Greaseless
  • Roller can be set in Passive Mode – maintains maximum soil firming
  • Roller can be set in Aggressive Mode – maintains maximum soil shattering
  • Break clods and level soil in one pass
  • Excellent performance in conservation tillage
  • Standard mounting arms fit 2-1/2″, 3″ and 4″ tall frames without adapters
  • Mounts on most types of straight frame tillage tools
  • Harrow sizes range from 3′ 6″ up to 6′ 6″ in 9″ increments

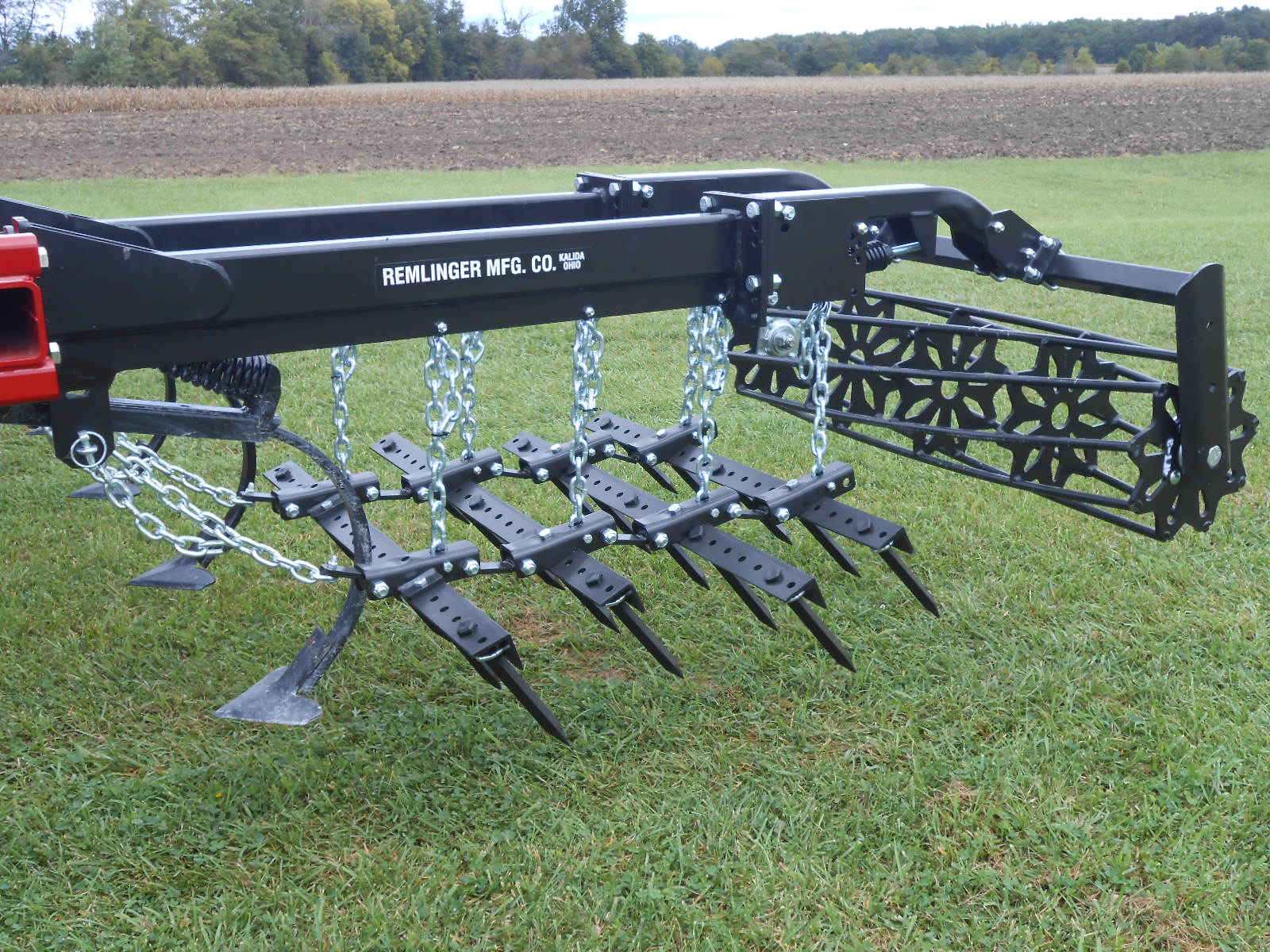

  • Available with Heavy Duty Double Bar Roller

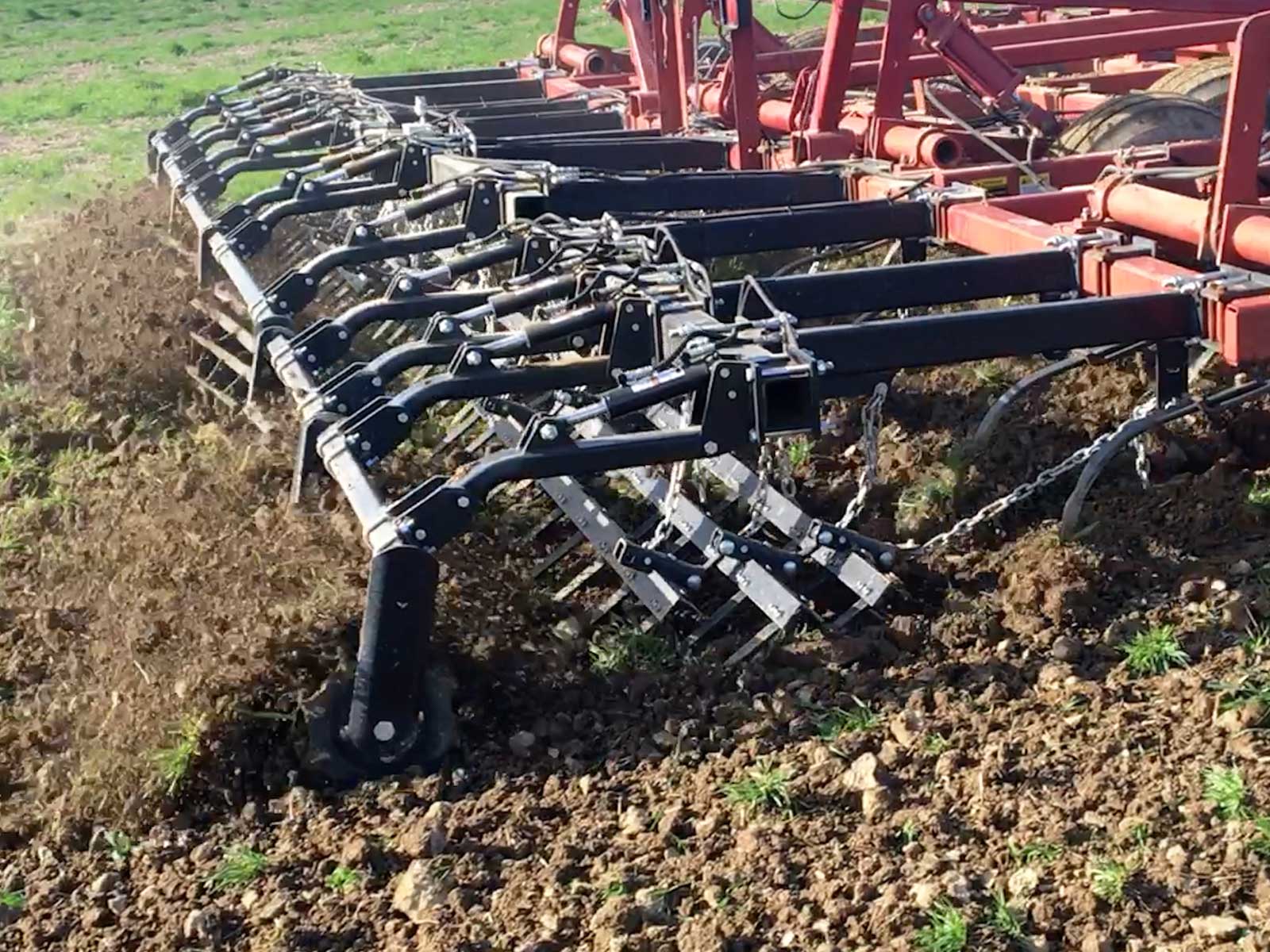

  • Hydraulic Roller Control available

When ordering, please specify implement make, model, cut width, base width & frame size.
